\(QS7_{8}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(7\) | \(4311\) | \(3121\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = -e+x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = -e \, c+y+c \, x^{2}+(2+2 \, h-2 \, c-n) \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = \frac{-725}{1000}, \quad c = \frac{55}{100}, \quad n = \frac{1}{25}, \quad e = \frac{1}{10000}\)

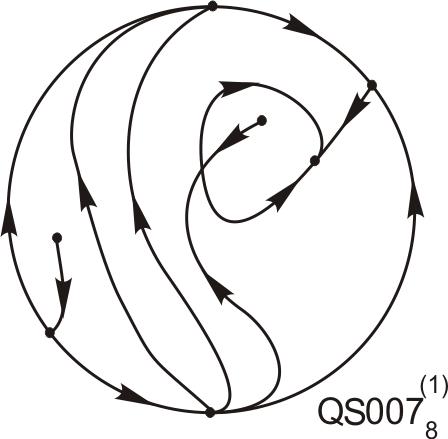

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(U^1_{B40}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS3_{1}^{(0)}\) and \(QS5_{7}^{(0)}\).
